| TE | 133-01553 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50SOSWSP5E-2 Competences Cable holder Accessories |

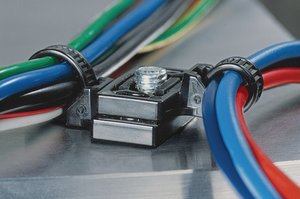

| 描述 | Cable tie head always situated in defined position Easy to install without the need for a tool Provides 5 – 6 mm lateral adjustment Very low profile, stackable design For parallel routing of several bundles |
| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9 |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T50SOSWSP5E-2-PA66HS-BK |
| Product Family | T50SOSWSP5E-2 for 5 mm studs, retainer height 3.5 mm |
| Product Group | 1-piece fixing ties for weld studs, lateral adjustment |
| Releasable Closure (Yes/No) | No |
| Short Description | 1-Piece Fixing Tie 162.6x4.6 mm, for Weld Studs, heat stabilised, black |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Bundle ∅ max. | 35.0mm |
| Bundle ∅ min. | 1.0mm |
| Length (L) | 162.6mm |
| Min.Tensile Strength | 225N |
| Width (W) | 4.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C, (+145 °C, 500 h) |
| GTIN-13 / EAN | 4031026501543.0 |
| Packaging 1 - Height (m) | 0.06m |
| Packaging 1 - Length (m) | 0.35m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00525m³ |
| Packaging 1 - Weight (kg) | 0.819001kg |
| Packaging 1 - Width (m) | 0.25m |
