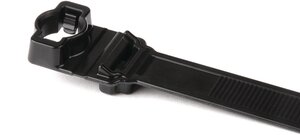

157-00401

产品描述：: One-piece fixing ties High specification materials Superior design Suitable for complex applications

TE	157-00401
分类	紧固件
品牌	海尔曼太通全球(HellermannTyton)
类型	Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to WSI250 Competences Cable holder Similar products
描述	One-piece fixing ties High specification materials Superior design Suitable for complex applications
Colour	Black (BK)
Identification Plate Position	none
Pack Cont.	300pcs.
Package Quantity per	bag
PART DESCRIPTION	WSI250-PA66HIRHSUV-BK
Product Family	WS-Series for 6.35 mm threaded studs
Product Group	1-Piece Fixing Ties for Weld Studs, for Heavy Duty Applications
Releasable Closure (Yes/No)	No
颜色	Black (BK)
Tie Closure	plastic pawl
Variant	Inside Serrated
Bundle ∅ max.	82.5mm
Bundle ∅ min.	9.5mm
Length (L)	322.6mm
Min.Tensile Strength	535.0N
Width (W)	12.7mm
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 HB
Hazardous good	No
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Operating Temperature - °C	-40 °C to +105 °C
GTIN-13 / EAN	4031026312620.0
Packaging 1 - Height (m)	0.03m
Packaging 1 - Length (m)	0.5m
Packaging 1 - Qty	300.0
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.0018m³
Packaging 1 - Weight (kg)	1.950001kg
Packaging 1 - Width (m)	0.12m
