| TE | 115-07110 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to RT50RS5 Competences Cable holder Similar products |
| 描述 | For 5 mm studs or 5 mm ISO threaded studs Soft-push versions for easy assembly, without tool Hard-push versions for special firm fit need to be hammered onto the stud Releasable types: RT50RS5 and SB |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | RT50RS5-PA66-BK |
| Product Family | 1-Piece Fixing Ties for Weld Studs (Softpush) in the Strap, Releasable |
| Product Group | 1-Piece Fixing Ties for Weld Studs in the Strap |
| Releasable Closure (Yes/No) | Yes |

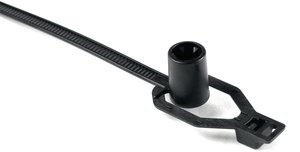

| Short Description | 1-Piece Fixing Tie for Weld Studs in the strap PA66 190x4.6 black |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 40.0mm |
| Bundle ∅ min. | 9.0mm |
| Length (L) | 190mm |
| Min.Tensile Strength | 225N |
| Thickness (T) | 1.5mm |
| Width (W) | 4.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C, (+105 °C, 500 h) |
| GTIN-13 / EAN | 4031026108544.0 |
| Packaging 1 - Height (m) | 0.06m |
| Packaging 1 - Length (m) | 0.36m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00464m³ |
| Packaging 1 - Weight (kg) | 0.221601kg |
| Packaging 1 - Width (m) | 0.215m |
