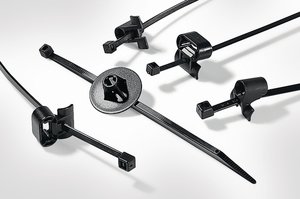

| TE | 150-16943 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50RSBH5 Competences Cable holder Accessories |
| 描述 | Pre-assembled with cable tie and weld stud mounting base Quick and easy installation Head rotates into perfect position for installation ’Soft-push’ design for tool-free installation Mushroom-shaped SBH handles insulation or a sound-deadening blanket SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required) SB5 allow lateral tolerance for fixing point |
| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO7SP, EVO9 |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T50RSBH5-PA66HS-BK |
| Product Group | 2-Piece Fixing Ties for Weld Studs, with Disc (for isolation material) |
| Releasable Closure (Yes/No) | No |
| Short Description | 2-Piece Fixing Ties for Weld Studs with Plate 202x4.6 PA66HS black |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 45.0mm |
| Bundle ∅ min. | 5.0mm |
| Length (L) | 202mm |
| Min.Tensile Strength | 225N |
| Thickness (T) | 1.2mm |
| Width (W) | 4.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C, (+145 °C, 500 h) |
| GTIN-13 / EAN | 4031026119632.0 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.395m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.03555m³ |
| Packaging 1 - Weight (kg) | 1.529135kg |
| Packaging 1 - Width (m) | 0.45m |
