| TE | 157-00068 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to OS180FT7LH Competences Cable holder Accessories Similar products |

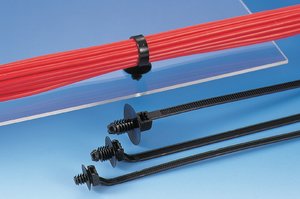

| 描述 | Cable tie head always situated in defined position Easy to assemble without the need for a tool Disc adjusts tie for pressure from various directions and minimises access of dust and dirt Fir tree foot part can be used for a variety of panel thicknesses Suitable for use within threaded holes |
| Application Tool | MK9P, MK9P w/ Upper air, MK21, EVO7, EVO7SP, EVO9, EVO9HT |
| Colour | Grey (GY) |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | OS180FT7LH-PA66-GY |
| Product Family | Fir Tree Parts FT7 |
| Product Group | 1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes |
| Releasable Closure (Yes/No) | No |
| Short Description | 1-piece fixing ties with fir tree, with disc, for round holes 180x5.3 mm, grey |
| 颜色 | Grey (GY) |
| Tie Closure | plastic pawl |
| Bundle ∅ max. | 30.0mm |
| Bundle ∅ min. | 1.6mm |
| Length (L) | 180.0mm |
| Min.Tensile Strength | 200N |
| Thickness (T) | 1.4mm |
| Width (W) | 5.3mm |
| ELV compliant (Article 4 - 2) | YES |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| GTIN-13 / EAN | 4031026493503.0 |
| Packaging 1 - Height (m) | 0.1m |
| Packaging 1 - Length (m) | 0.2m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.006m³ |
| Packaging 1 - Weight (kg) | 0.950001kg |
| Packaging 1 - Width (m) | 0.3m |
