| TE | 156-00049 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to CBT30MR Competences Cable holder Accessories |

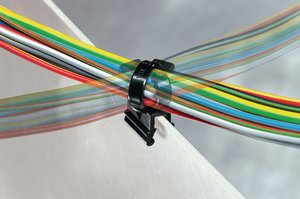

| 描述 | Pre-assembled 2-piece fixing tie with EdgeClip Easy to assemble by hand Cable tie head can be moved after bundling For edges of 1 – 2.5 mm or 1 – 3 mm Can be rotated to the desired position during mounting |
| Application Tool | MK3PNSP2, MK20, EVO7 |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | carton |
| PART DESCRIPTION | CBT30MR-PA66HS/POM-BK |
| Product Family | CBT30MR for max. bundle diameter 32.0 mm, rotatable 360 ° |
| Product Group | 2-Piece Fixing Ties for Edges, twistable |
| Short Description | 2-Piece fixing tie 100x2.45 mm, for edges, PA66HS/PA66HIRHS, black |
| 颜色 | Black (BK) |
| Variant | Inside Serrated |
| Bundle ∅ max. | 32.0mm |
| Bundle ∅ min. | 1.5mm |
| Length (L) | 160mm |
| Min.Tensile Strength | 135N |
| Width (W) | 3.5mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyacetal (POM) |
| Operating Temperature - °C | -40 °C to +90 °C |
| GTIN-13 / EAN | 4031026254296.0 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.4m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.018m³ |
| Packaging 1 - Weight (kg) | 1.405993kg |
| Packaging 1 - Width (m) | 0.3m |
