| TE | 156-01601 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to CBTO50R Competences Cable holder Accessories Similar products |

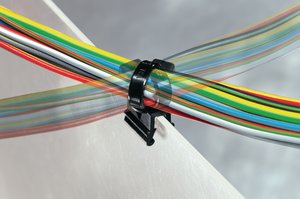

| 描述 | Easy assembly, just clip on per hand ? For edges of 1 – 3 mm Integrated metal clamp holds clip firmly in place Clamp consists of double tempered steel spring Ideal for applications where holes or adhesives are not suitable |
| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9 |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | CBTO50R-PA66HS/PA66HIRHS-BK |
| Product Family | CBTO50R for max. bundle diamater 47.0 mm, rotatable 90 ° |
| Product Group | 2-Piece Fixing Ties for Edges, twistable |
| Releasable Closure (Yes/No) | No |
| Short Description | Twistable 2-Piece Fixing Tie for Edges 200x4.6 black |
| 颜色 | Black (BK) |
| Variant | Inside Serrated |
| Bundle ∅ max. | 47.0mm |
| Bundle ∅ min. | 2.0mm |
| Length (L) | 202mm |
| Min.Tensile Strength | 225N |
| Thickness (T) | 1.2mm |
| Width (W) | 4.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Nato number | 5975-12-395-8704 |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026233055.0 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.395m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.03555m³ |
| Packaging 1 - Weight (kg) | 1.471135kg |
| Packaging 1 - Width (m) | 0.45m |
