| TE | 126-00076 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T60SOSSFT65x130-E-MD Competences Cable holder Accessories |
| 描述 | Easy to assemble without the need for a tool Arrowhead simply locks into place Disc adjusts the tie for pressures from various directions Cable tie head always situated in defined position Cellular rubber seal minimises access of dust and dirt SFT versions for oval holes feature anti-twist protection |
| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK9P, MK20, MK21, EVO7, EVO9, EVO9HT |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T60SOSSFT65x130-E-MD-PA66HS-NA |
| Product Family | for Oval holes |
| Product Group | 1-Piece Fixing Ties with Arrowhead, with Disc, sealed, for Oval Holes |
| Releasable Closure (Yes/No) | No |

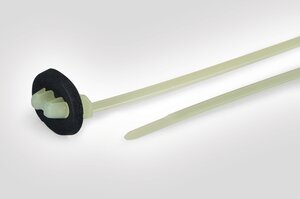

| Short Description | Fixing tie 157,6 x5,5 mm, arrowhead, heat stabilised, natural |
| 颜色 | Natural (NA) |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Bundle ∅ max. | 30.0mm |
| Bundle ∅ min. | 1.6mm |
| Length (L) | 157.6mm |
| Min.Tensile Strength | 300N |
| Thickness (T) | 1.35mm |
| Width (W) | 5.5mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026297033.0 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.395m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.03555m³ |
| Packaging 1 - Weight (kg) | 1.110635kg |
| Packaging 1 - Width (m) | 0.45m |
