| TE | 157-00388 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50SOS3DOP65X130-E Competences Cable holder Accessories Similar products |

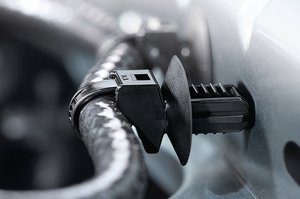

| 描述 | Cable tie head always situated in defined position Easy to assemble without the need for a tool Disc adjusts tie for pressure from various directions and minimises access of dust and dirt Fir tree foot part can be used for a variety of panel thicknesses Suitable for use within threaded holes Versions for oval holes feature anti-twist protection |
| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9 |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 6000Carton |
| Package Quantity per | carton |
| PART DESCRIPTION | T50SOS3DOP65X130-E-PA66HIRHSUV-BK |
| Product Family | 1-piece fixing ties with fir tree, with disc, for oval holes |
| Product Group | 1-Piece Fixing Ties with Fir Tree, with Disc, for Oval Holes |
| Releasable Closure (Yes/No) | No |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Bundle ∅ max. | 35.0mm |
| Bundle ∅ min. | 1.5mm |
| Length (L) | 165.0mm |
| Min.Tensile Strength | 180N |
| Thickness (T) | 1.3mm |
| Width (W) | 4.6mm |
| Flammability | UL 94 HB |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Operating Temperature - °C | -40 °C to +105 °C |
| Packaging 1 - Weight (kg) | 1.95kg |
