| TE |
151-01460 |
| 分类 |
紧固件 |
| 品牌 |
海尔曼太通全球(HellermannTyton) |
| 类型 |
Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to RCB90LM8 Competences Ratchet P-Clamp for mounting cables and hoses Cable holder Accessories Similar products |
| 描述 |

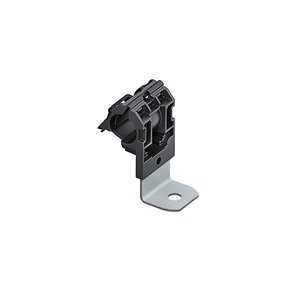

Ratchet P-Clamp B-Series for bundle diameters from 13.2 mm to 19.5 mm One-piece ratchet closure design allows for easy installation during pre- or final assembly Multiple configurations handle a wide range of diameters and applications, reducing part inventory Clamp interior is designed to guide and center bundle to reduce pinching Easy release feature allows for quick adjustments and maintenance Impact modified, heat and UV stabilized PA66 provides long-term durability, in- and outdoors Steel m |
| Colour |
Black (BK) |
| Pack Cont. |
200pc. |
| Package Quantity per |
carton |
| PART DESCRIPTION |
RCB90LM8-PA66HIRHSUV/ST/ZN-BK |
| Product Family |
For bundle diameters from 12.7 mm to 19.5 mm, B-Series |
| Product Group |
Ratchet P-Clamp |
| Short Description |
Fixing element 129.9x34.9 mm, bundle diameter: 12.7-19.5 mm, M8, black |
| 颜色 |
Black (BK) |
| Variant |
Long |
| Bundle ∅ max. |
19.5mm |
| Bundle ∅ min. |
12.7mm |
| Length (L) |
129.9mm |
| Min.Tensile Strength |
445.0N |
| Width (W) |
34.9mm |
| ELV compliant (Article 4 - 2) |
YES |
| Flammability |
UL 94 HB |
| Halogenfree |
Yes |
| Hazardous good |
No |
| Material |
Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Steel (ST), Zinc plated (ZN) |
| Operating Temperature - °C |
-40 °C to +105 °C |
| UL-File Number |
E64139 |
| GTIN-13 / EAN |
4031026539843.0 |
| Packaging 1 - Height (m) |
0.16m |
| Packaging 1 - Length (m) |
0.59m |
| Packaging 1 - Qty |
200.0 |
| Packaging 1 - Type |
bag |
| Packaging 1 - Volume (m³) |
0.03682m³ |
| Packaging 1 - Weight (kg) |
7.970601kg |
| Packaging 1 - Width (m) |
0.39m |
