| TE | 151-01565 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to BCAA Competences Self-Adhesive cable tie mounts Similar products |
| 描述 | Easy to install No damage to surfaces Easy maintenance of bundle by simply changing cable tie Cable tie head can be moved after bundling Applicable to a wide range of panel thicknesses |
| Colour | Black (BK), Green (GN) |
| Pack Cont. | 200pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | BCAA-PA66HSGF30-BK/GN |
| Product Family | Beam clamps / Wedge clips |
| Product Group | Heavy duty harness clips |

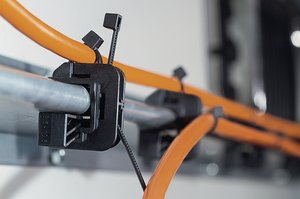

| Short Description | Beam clamp for heavy duty applications |
| 颜色 | Black (BK), Green (GN) |
| Length (L) | 30.8mm |
| Width (W) | 28.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised, glass-fibre reinforced (PA66HSGF30%) |
| Operating Temperature - °C | -40 °C to +140 °C, intermittent +160 °C |
| GTIN-13 / EAN | 4031026550701.0 |
| Packaging 1 - Height (m) | 0.16m |
| Packaging 1 - Length (m) | 0.59m |
| Packaging 1 - Qty | 200.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.03115m³ |
| Packaging 1 - Weight (kg) | 4.456001kg |
| Packaging 1 - Width (m) | 0.33m |
