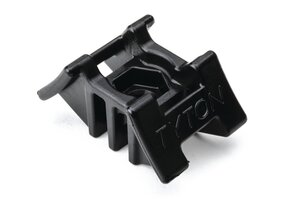

| TE | 151-29404 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications More Information Further information to S2HM25 Competences Self-Adhesive cable tie mounts |
| 描述 | For parallel routing of different bundles to avoid wear and chafing Offers secure alignment to the bundle Can be used in combination with heavy duty cable ties Easy maintenance of bundle by simply changing the cable tie Made from impact modified, heat stabilized, UV resistant material |
| Colour | Black (BK) |
| Pack Cont. | 50pcs. |
| Package Quantity per | box |
| PART DESCRIPTION | S2HM25-PA66HIRHSUV-BK |
| Product Group | Two way saddle mount for heavy duty applications, for parallel separation |
| 颜色 | Black (BK) |
| Bundle ∅ max. | 89.0mm |
| Length (L) | 45.0mm |
| Width (W) | 30.0mm |
| Flammability | UL 94 HB |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Operating Temperature - °C | -40 °C to +105 °C |
