| TE | 151-02600 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to CH20D7 |
| 描述 | Easy to install without the need for a tool Arrowhead simply locks into place Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water Bundles and cables routed at a set distance from punched holes |
| Colour | Black (BK) |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | CH20D7-PA66-BK |

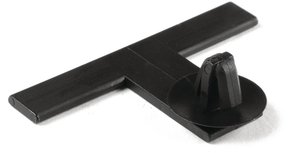

| Product Group | Bundling Clips with Fir Tree, for Distance Routing |
| Short Description | Bundling Clip, round hole 6.4 - 7.0 mm, arrow head, offset, black |
| 颜色 | Black (BK) |
| Length (L) | 50.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| GTIN-13 / EAN | 5022660302572.0 |
| Packaging 1 - Height (m) | 0.053m |
| Packaging 1 - Length (m) | 0.141m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00136m³ |
| Packaging 1 - Weight (kg) | 0.190001kg |
| Packaging 1 - Width (m) | 0.182m |
