| TE | 151-00151 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to EC28 Competences Cable holder Ratchet P-Clamp for mounting cables and hoses |
| 描述 | Simply push per hand onto a plastic edge For edges of 1-3 mm Integrated metal clamp holds clip firmly in place Clamp consists of double tempered spring steel Ideal for applications where holes or adhesives are not suitable |
| Colour | Black (BK) |
| Pack Cont. | 1000pcs. |
| Package Quantity per | bag |

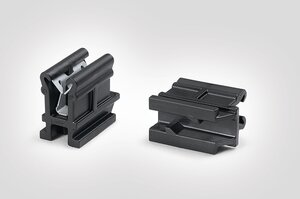

| PART DESCRIPTION | EC28-PA66HIRHS-BK |
| Product Group | Connector Clips for Edges |
| Short Description | Connector Clip 16x9.1 mm, for edges, high impact modified, heat stabilised, black |
| 颜色 | Black (BK) |
| Length (L) | 16.0mm |
| Width (W) | 9.1mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026253800.0 |
| Packaging 1 - Height (m) | 0.06m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 1000.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00486m³ |
| Packaging 1 - Weight (kg) | 1.843001kg |
| Packaging 1 - Width (m) | 0.27m |
