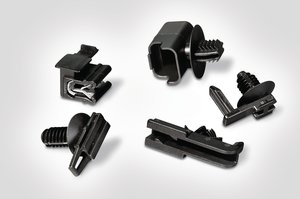

| TE | 151-01244 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to CCOVAL3 Similar products |
| 描述 | Connector easily installed by simply pushing into place Connection can be released (non-destructive) One fir tree foot part can be used for a variety of panel thicknesses Disc covers the hole to prevent dirt and water gaining access For twist protection: Variants with additional stick or for oval holes |
| Colour | Black (BK) |
| Pack Cont. | 3500pcs. |
| Package Quantity per | carton |
| PART DESCRIPTION | CCOVAL3-PA66HIRHSUV-BK |
| Product Family | With FirTree |
| Product Group | Connector Clips for Oval Holes |
| 颜色 | Black (BK) |
| Length (L) | 25.20mm |
| Width (W) | 19.50mm |
| ELV compliant (Article 4 - 2) | YES |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026477916.0 |
| Packaging 1 - Height (m) | 0.21m |
| Packaging 1 - Length (m) | 0.579m |
| Packaging 1 - Qty | 3500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.03392m³ |
| Packaging 1 - Weight (kg) | 8.638001kg |
| Packaging 1 - Width (m) | 0.279m |
