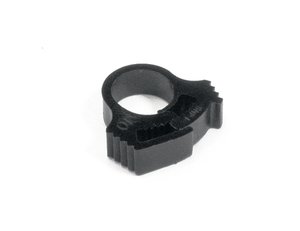

| TE | 192-10010 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to SNP1 Competences Ratchet P-Clamp for mounting cables and hoses Cable holder Accessories Similar products |
| 描述 | Releasable and reusable plastic hose clamps Self-locking Releasable by giving a lateral movement to the ’head’ Installation by hand possible Installation with processing tool for a secure tensioning For higher operating temperatures: Glass Filled PA66 |
| Application Tool | MSNP1-70, ASNP2-22, ASNP24-70 |
| Colour | Black (BK) |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | SNP1-PA66GF13-BK |
| Product Family | SNP-Series |
| Product Group | Snapper hose clips for tubes and harnesses |
| Short Description | Snapper Hose Clip for Tubes and Harnesses black |
| 颜色 | Black (BK) |
| Variant | Closed |
| Bundle ∅ max. | 6.8mm |
| Bundle ∅ min. | 6.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, glass-fibre reinforced (PA66GF13%) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026128467.0 |
| Packaging 1 - Height (m) | 0.05m |
| Packaging 1 - Length (m) | 0.18m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00144m³ |
| Packaging 1 - Weight (kg) | 0.110001kg |
| Packaging 1 - Width (m) | 0.16m |
