| TE | 211-70204 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to 8D20 Competences Ratchet P-Clamp for mounting cables and hoses Cable holder Similar products |

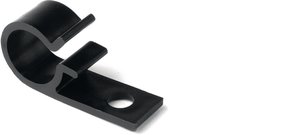

| 描述 | Screwed D-Clips available in 3 sizes Guaranteed time and cost saving by simply pressing cable into holder Flexible grip for later removal or replacement of cables 3 different bore diameters available for fixing holders |
| Colour | Black (BK) |
| Pack Cont. | 200pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | 8D20-POM-BK |
| Product Family | D-Clip Series |
| Product Group | Screw Mount |
| Short Description | Screw Mount black |
| 颜色 | Black (BK) |
| Variant | Closed |
| Bundle ∅ max. | 20.0mm |
| Bundle ∅ min. | 20.0mm |
| Length (L) | 28.0mm |
| Width (W) | 15.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyacetal (POM) |
| Operating Temperature - °C | -40 °C to +90 °C, (+160 °C, for 200 h) |
| GTIN-13 / EAN | 5022660302909.0 |
| Packaging 1 - Height (m) | 0.05m |
| Packaging 1 - Length (m) | 0.356m |
| Packaging 1 - Qty | 200.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00543m³ |
| Packaging 1 - Weight (kg) | 1.300001kg |
| Packaging 1 - Width (m) | 0.305m |
