| TE | 151-01051 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to BC90FT6B Similar products |

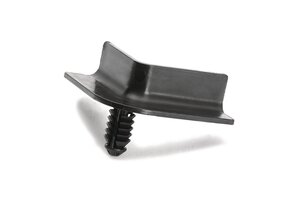

| 描述 | These mini channels with their 90 degree design are a solution for routing a wire harness around a corner The additional fixing element allows the harness to be fixed at this location The mini channels can be used with a wide range of panel thicknesses and hole diameters |
| Colour | Black (BK) |
| Pack Cont. | 4000pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | BC90FT6B-PA66HIRHSUV-BK |
| Product Family | With fixing element |
| Product Group | Mini cable channel family for corners |
| 颜色 | Black (BK) |
| Length (L) | 25.0mm |
| Width (W) | 1.5mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026493749.0 |
| Packaging 1 - Height (m) | 0.203m |
| Packaging 1 - Length (m) | 0.595m |
| Packaging 1 - Qty | 4000.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.04711m³ |
| Packaging 1 - Weight (kg) | 7.916001kg |
| Packaging 1 - Width (m) | 0.39m |
