| TE | 133-00059 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T40XEC5SP-E Competences Cable holder Accessories Similar products |
| 描述 | Easy assembly, just clip on per hand For edges of 1 - 3 mm, 3 - 6 mm, 4 - 6 mm or 6 - 8 mm Integrated metal clamp holds clip firmly in place Clamp consists of double tempered steel spring Ideal for applications where holes or adhesives are not suitable |
| Application Tool | MK3PNSP2, MK7P, MK20, EVO7 |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T40XEC5SP-E-PA66HS-BK |
| Product Family | EdgeClip-Series |
| Product Group | 1-piece fixing ties for edges |
| Releasable Closure (Yes/No) | No |

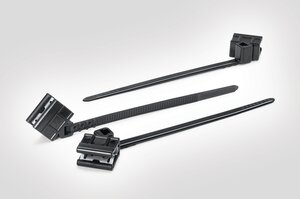

| Short Description | Fixing tie 85x4 mm, heat stabilised, black |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 15.0mm |
| Bundle ∅ min. | 1.6mm |
| Length (L) | 85.0mm |
| Min.Tensile Strength | 178N |
| Width (W) | 4.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C, (+145 °C, 500 h) |
| GTIN-13 / EAN | 4031026238234.0 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.4m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.018m³ |
| Packaging 1 - Weight (kg) | 0.921993kg |
| Packaging 1 - Width (m) | 0.3m |
