| TE | 157-01100 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50SDP6 Competences Cable holder Accessories Similar products |
| 描述 | Cable tie head always situated in defined position Easy to assemble without the need for a tool Disc adjusts tie for pressure from various directions and minimises access of dust and dirt Fir tree foot part can be used for a variety of panel thicknesses Suitable for use within threaded holes |
| Application Tool | MK3PNSP2, MK7P, MK20, EVO7, EVO7SP |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T50SDP6-PA66HIRHS-BK |
| Product Family | Fir Tree Parts FT6 |
| Product Group | 1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes |
| Releasable Closure (Yes/No) | No |

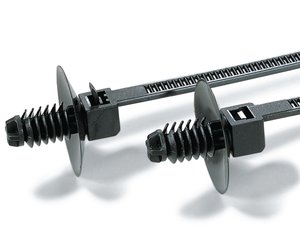

| Short Description | 1-Piece fixing tie 170x5.1 mm, with fir tree, with Disc, for round holes, high impact modified, heat stabilised, black |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 31.0mm |
| Bundle ∅ min. | 1.5mm |
| Length (L) | 170mm |
| Min.Tensile Strength | 225N |
| Width (W) | 5.1mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 5022660326493.0 |
| Packaging 1 - Height (m) | 0.105m |
| Packaging 1 - Length (m) | 0.42m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.01433m³ |
| Packaging 1 - Weight (kg) | 0.850001kg |
| Packaging 1 - Width (m) | 0.325m |
