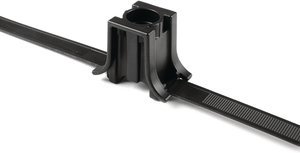

| TE | 117-00012 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to SDCTR312 Competences Cable holder |
| 描述 | Wide strap minimizes pinching of soft hoses and convoluted tubing. Clamping rails increase circumferential grip on varying bundle diameters. Locking stud mount pawls allow for easy hand insertion. Nut or weld nesting counterbore provides flush mounting at the base. |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 250pcs. |
| Package Quantity per | carton |
| PART DESCRIPTION | SDCTR312-PA66HIRHSUV-BK |
| Product Family | SDCTR312 for 8 mm studs |
| Product Group | 1-Piece Fixing Ties for Weld Studs, for Heavy Duty Applications, for parallel routing |
| Releasable Closure (Yes/No) | No |
| Short Description | 1-Piece fixing tie 510.5x12.7 mm, for weld studs, for heavy duty applications, for parallel routing, PA66HIRHSUV, black |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Bundle ∅ max. | 58.4mm |
| Bundle ∅ min. | 9.5mm |
| Length (L) | 510.5mm |
| Min.Tensile Strength | 445N |
| Width (W) | 12.7mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Operating Temperature - °C | -40 °C to +110 °C |
| GTIN-13 / EAN | 4031026510668.0 |
| Packaging 1 - Qty | 250.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 4.750001kg |
