111-07110

产品描述：: For 5 mm studs or 5 mm ISO threaded studs Soft-push versions for easy assembly, without tool Eyelet allows excess tail to be tucked neatly away

TE	111-07110
分类	紧固件
品牌	海尔曼太通全球(HellermannTyton)
类型	Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50RS5 Competences Cable holder Accessories
描述	For 5 mm studs or 5 mm ISO threaded studs Soft-push versions for easy assembly, without tool Eyelet allows excess tail to be tucked neatly away
Application Tool	MK3PNSP2, MK7P, EVO7, EVO7SP
Colour	Black (BK)
Identification Plate Position	none
Pack Cont.	100pcs.
Package Quantity per	bag

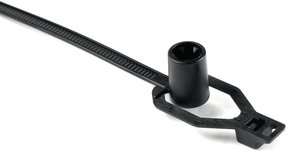

PART DESCRIPTION	T50RS5-PA66-BK
Product Family	1-Piece Fixing Ties for Weld Studs (Softpush) in the Strap
Product Group	1-Piece Fixing Ties for Weld Studs in the Strap
Releasable Closure (Yes/No)	No
Short Description	1-Piece Fixing Tie for Weld Studs in the strap PA66 190x4.6 black
颜色	Black (BK)
Tie Closure	plastic pawl
Variant	Inside Serrated
Bundle ∅ max.	40.0mm
Bundle ∅ min.	9.0mm
Length (L)	190mm
Min.Tensile Strength	225N
Thickness (T)	1.5mm
Width (W)	4.6mm
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 V2
Hazardous good	No
Material	Polyamide 6.6 (PA66)
Operating Temperature - °C	-40 °C to +85 °C
GTIN-13 / EAN	5022660325892.0
Packaging 1 - Height (m)	0.05m
Packaging 1 - Length (m)	0.356m
Packaging 1 - Qty	100.0
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.00408m³
Packaging 1 - Weight (kg)	0.380001kg
Packaging 1 - Width (m)	0.229m
