113-03010

TE	113-03010
分类	紧固件
品牌	海尔曼太通全球(HellermannTyton)
类型	Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T30MR Competences Cable holder Accessories Similar products
描述	One-piece bundling and fixing tie Quick and easy installation
Application Tool	MK3PNSP2, MK20, EVO7
Colour	Black (BK)
Identification Plate Position	none
Pack Cont.	100pcs.
Package Quantity per	bag
PART DESCRIPTION	T30MR-PA66-BK
Product Family	MR Series
Product Group	1-piece fixing ties with mounting head for screws
Releasable Closure (Yes/No)	No

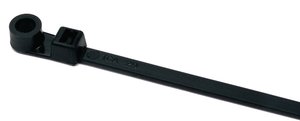

Short Description	Fixing tie 160x3.5 mm, screwable (4.3 mm), black
颜色	Black (BK)
Tie Closure	plastic pawl
Variant	Inside Serrated
Bundle ∅ max.	32.0mm
Bundle ∅ min.	1.5mm
Length (L)	160.0mm
Min.Tensile Strength	135.0N
Thickness (T)	1.2mm
Width (W)	3.5mm
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 V2
Hazardous good	No
Material	Polyamide 6.6 (PA66)
Operating Temperature - °C	-40 °C to +85 °C
Specifications	ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
UL-File Number	E64139
GTIN-13 / EAN	4031026108186.0
Packaging 1 - Height (m)	0.027m
Packaging 1 - Length (m)	0.255m
Packaging 1 - Qty	100.0
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.00085m³
Packaging 1 - Weight (kg)	0.087001kg
Packaging 1 - Width (m)	0.123m
