151-14700

产品描述：: Fixing elements with fir tree or arrow head Simply clip on a wire or hose Clips to be attached into bore hole Bundles can be released at any time

TE	151-14700
分类	紧固件
品牌	海尔曼太通全球(HellermannTyton)
类型	Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to PC35LAH Similar products
描述	Fixing elements with fir tree or arrow head Simply clip on a wire or hose Clips to be attached into bore hole Bundles can be released at any time
Colour	Black (BK)
Pack Cont.	100pcs.
Package Quantity per	bag
PART DESCRIPTION	PC35LAH-PA66-BK
Product Family	PC-Series with Arrowhead
Product Group	Fixing Elements for Tubes and Harnesses

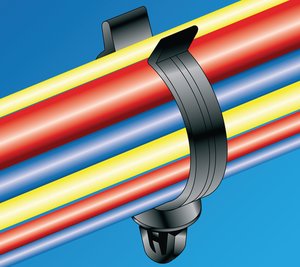

Short Description	Harness Clip, open, round hole 4.7 mm, arrow head, black
颜色	Black (BK)
Bundle ∅ max.	3.5mm
Length (L)	9.0mm
Width (W)	8.0mm
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 V2
Hazardous good	No
Material	Polyamide 6.6 (PA66)
Operating Temperature - °C	-40 °C to +85 °C
GTIN-13 / EAN	5022660313646.0
Packaging 1 - Height (m)	0.025m
Packaging 1 - Length (m)	0.203m
Packaging 1 - Qty	100.0
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.00077m³
Packaging 1 - Weight (kg)	0.05kg
Packaging 1 - Width (m)	0.152m
