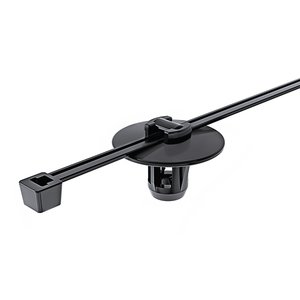

| TE | 150-77591 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50RSBH5SD-14 Competences Cable holder Accessories |
| 描述 | Pre-assembled with cable tie and weld stud mounting base Quick and easy installation Head rotates into perfect position for installation ’Soft-push’ design for tool-free installation Mushroom-shaped SBH handles insulation or a sound-deadening blanket SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required) SB5 allow lateral tolerance for fixing point |
| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9 |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T50RSBH5SD-14-PA66HS-BK |
| Product Group | 2-Piece Fixing Ties for Weld Studs, with Plate (for isolation material) |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 45.0mm |
| Bundle ∅ min. | 1.0mm |
| Length (L) | 200mm |
| Min.Tensile Strength | 222N |
| Width (W) | 4.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026209722.0 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.47m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.05123m³ |
| Packaging 1 - Weight (kg) | 1.943597kg |
| Packaging 1 - Width (m) | 0.545m |
| Packaging 2 - Type | carton |
