| TE | 126-00057 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to OS160FT5 Competences Cable holder Similar products |

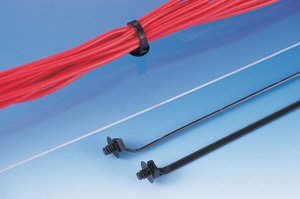

| 描述 | Cable tie head always situated in defined position Easy to assemble without the need for a tool Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt Fir tree foot part can be used for a variety of panel thicknesses Suitable for use within threaded holes |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | OS160FT5-PA66HSUV-BK |
| Product Family | Fir tree parts FT5 |
| Product Group | 1-piece fixing ties with fir tree, with disc, for round holes |
| Releasable Closure (Yes/No) | No |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Bundle ∅ max. | 30.0mm |
| Bundle ∅ min. | 3.0mm |
| Length (L) | 163.0mm |
| Min.Tensile Strength | 100N |
| Thickness (T) | 1.4mm |
| Width (W) | 4.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat and UV-stabilised (PA66HSUV) |
| Operating Temperature - °C | -40 °C to +110 °C |
| GTIN-13 / EAN | 4944387948356.0 |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 0.107001kg |
