| TE | 115-06960 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to RT50SFK Competences Cable holder Accessories Similar products |
| 描述 | Easy to assemble without the need for a tool Cable tie head always situated in defined position Arrowhead simply locks into place Supporting legs provide a secure and firm fixing in areas where space is limited Releasable and therefor reusable “Ladder style” types are very flexible |
| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9 |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 1000pcs. |
| Package Quantity per | bag |

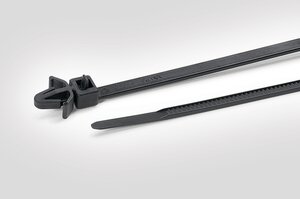

| PART DESCRIPTION | RT50SFK-PA66-BK |
| Product Family | 1-piece fixing ties with arrowhead, with wings, releasable, for round holes |
| Product Group | 1-Piece Fixing Ties with Arrowhead, with Wings, releasable |
| Releasable Closure (Yes/No) | Yes |
| Short Description | Fixing Tie 225x5.0 black |
| 颜色 | Black (BK) |
| Bundle ∅ max. | 50.0mm |
| Bundle ∅ min. | 6.0mm |
| Length (L) | 225mm |
| Min.Tensile Strength | 225N |
| Thickness (T) | 1.4mm |
| Width (W) | 5.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C, (+105 °C, 500 h) |
| GTIN-13 / EAN | 4031026108520.0 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.395m |
| Packaging 1 - Qty | 1000.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.03555m³ |
| Packaging 1 - Weight (kg) | 1.959135kg |
| Packaging 1 - Width (m) | 0.45m |
