| TE | 150-15493 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T80RSFT Competences Cable holder Accessories Similar products |
| 描述 | Easy to assemble without the need for a tool Arrowhead simply locks into place Disc adjusts tie for pressures from various directions and minimises access of dust, dirt and water Cable tie head always situated in defined position Bundle runs directly across fixing point Simple assembly due to tab at the end of the head |
| Application Tool | MK3PNSP2, MK3SP, MK7P, MK20, EVO7, EVO7SP |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T80RSFT-PA66HS-BK |
| Product Family | T80RSFT for Panel thickness 1,0 - 3,5 mm |
| Product Group | 1-Piece Fixing Ties with Arrowhead, with Disc in the strap |
| Releasable Closure (Yes/No) | No |

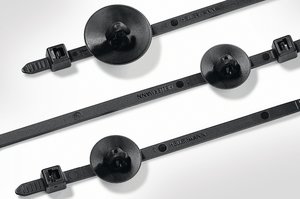

| Short Description | 1-Piece Fixing Tie with Arrowhead and Disc in the strap PA66HS 190x4.6 black |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 45.0mm |
| Bundle ∅ min. | 7.0mm |
| Length (L) | 190mm |
| Min.Tensile Strength | 355N |
| Thickness (T) | 1.2mm |
| Width (W) | 4.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026119564.0 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.395m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.03555m³ |
| Packaging 1 - Weight (kg) | 0.929135kg |
| Packaging 1 - Width (m) | 0.45m |
