| TE | 156-00276 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50RCOUPLER Competences Cable holder Accessories Similar products |

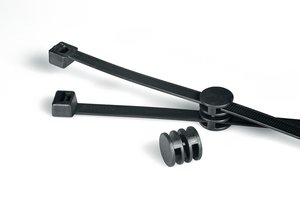

| 描述 | Pre-assembled 2-piece fixing tie with coupler Cable tie head can be moved after bundling Easy addition of cables after assembly For parallel routing of bundles that can be twisted 90° even after installation |
| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9 |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T50RCOUPLER-PA66HIRHS/PA66HIR(S)-BK |
| Product Family | T50RCoupler for max. bundle diameter 2 x 47.0 mm |
| Product Group | 2-piece fixing ties for parallel separation |
| Short Description | 2-Piece fixing tie 145x3.4 mm, for parallel separation, PEEK, black |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 47.0mm |
| Bundle ∅ min. | 2.0mm |
| Length (L) | 202.0mm |
| Min.Tensile Strength | 225N |
| Width (W) | 4.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6, high impact modified, scan black (PA66HIR(S)) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026436074.0 |
| Packaging 1 - Height (m) | 0.05m |
| Packaging 1 - Length (m) | 0.42m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0084m³ |
| Packaging 1 - Weight (kg) | 1.690001kg |
| Packaging 1 - Width (m) | 0.4m |
