| TE | 151-00927 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to SC6.6 Competences Self-Adhesive cable tie mounts |
| 描述 | Pre-drilled holes allows for Easy installation by hand. Cable can be removed and reinstalled without removing the clip, providing multiple use options. Made of PA66HIRHSUV material for withstanding extreme conditions |
| Colour | Black (BK) |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | SC6.6-PA66HIRHSUV-BK |
| Product Family | With Fir Tree, Solar Cable (SC) Series |
| Product Group | Fixing Elements for Tubes and Harnesses |

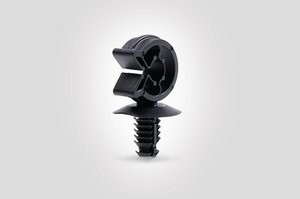

| Short Description | Solar Clip black |
| 颜色 | Black (BK) |
| Bundle ∅ max. | 7.6mm |
| Bundle ∅ min. | 6.0mm |
| Width (W) | 18.26mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026436012.0 |
| Packaging 1 - Height (m) | 0.0762m |
| Packaging 1 - Length (m) | 0.127m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00221m³ |
| Packaging 1 - Weight (kg) | 0.165001kg |
| Packaging 1 - Width (m) | 0.2286m |
