| TE | 156-00275 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T120RCOUPLER Competences Cable holder Accessories Similar products |

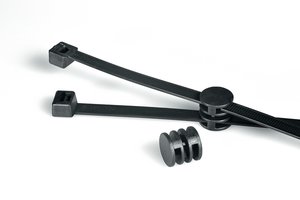

| 描述 | Pre-assembled 2-piece fixing tie with coupler Cable tie head can be moved after bundling Easy addition of cables after assembly For parallel routing of bundles that can be twisted 90° even after installation |
| Application Tool | MK6, MK9P, MK21, EVO9, EVO9HT |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 250pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T120RCOUPLER-PA66HIRHS/PA66HIR(S)-BK |
| Product Family | twistable up to 90° |
| Product Group | 2-piece fixing ties for parallel separation |
| Short Description | 2-Piece fixing tie 390.0x7.6 mm, for parallel separation, PA66HIRHS, black |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 105.0mm |
| Bundle ∅ min. | 10.0mm |
| Length (L) | 390mm |
| Min.Tensile Strength | 535.0N |
| Width (W) | 7.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogenfree | No |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6, high impact modified, scan black (PA66HIR(S)) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026289557.0 |
| Packaging 1 - Height (m) | 0.25m |
| Packaging 1 - Length (m) | 0.6m |
| Packaging 1 - Qty | 250.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.06m³ |
| Packaging 1 - Weight (kg) | 3.375001kg |
| Packaging 1 - Width (m) | 0.4m |
