| TE | 150-95500 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to TC5FT6S |
| 描述 | Easy to install without the need for a tool One fir tree foot part can be used for a variety of panel thicknesses Suitable for use within threaded holes Holding tabs prevent the tie slipping sideways Versions for oval holes feature anti-twist protection |
| Colour | Black (BK) |
| Pack Cont. | 1000pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | TC5FT6S-PA66HIRHS-BK |

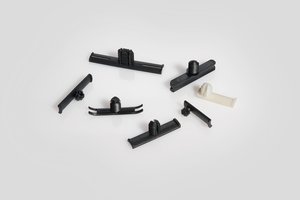

| Product Group | Bundling Clips with Fir Tree |
| Short Description | Bundling Clips with Fir Tree for Panel Thickness 0.75-1.5mm black |
| 颜色 | Black (BK) |
| Length (L) | 37.0mm |
| Width (W) | 8.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026206189.0 |
| Packaging 1 - Height (m) | 0.055m |
| Packaging 1 - Length (m) | 0.305m |
| Packaging 1 - Qty | 1000.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00377m³ |
| Packaging 1 - Weight (kg) | 0.642616kg |
| Packaging 1 - Width (m) | 0.225m |
