126-00000

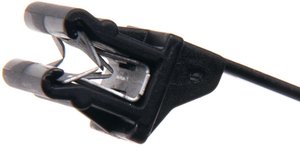

产品描述：: Easy assembly, just clip on per hand For edges of 1 – 3 mm Clamp consists of double tempered steel spring Ideal for applications where holes or adhesives are not suitable

TE	126-00000
分类	紧固件
品牌	海尔曼太通全球(HellermannTyton)
类型	Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50SOSEC13E Competences Cable holder Accessories Similar products
描述	Easy assembly, just clip on per hand For edges of 1 – 3 mm Clamp consists of double tempered steel spring Ideal for applications where holes or adhesives are not suitable
Application Tool	MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour	Black (BK)
Identification Plate Position	none
Pack Cont.	500pcs.
Package Quantity per	bag
PART DESCRIPTION	T50SOSEC13E-PA66HS-BK
Product Family	EdgeClip-Series
Product Group	1-piece fixing ties for edges
Releasable Closure (Yes/No)	No
Short Description	Fixing tie 160x4.6 mm black
颜色	Black (BK)
Tie Closure	plastic pawl
Variant	Outside Serrated
Bundle ∅ max.	35.0mm
Bundle ∅ min.	1.0mm
Length (L)	160.0mm
Min.Tensile Strength	180.0N
Thickness (T)	1.35mm
Width (W)	4.6mm
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 V2
Hazardous good	No
Material	Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C	-40 °C to +105 °C
GTIN-13 / EAN	4031026240510.0
Packaging 1 - Height (m)	0.2m
Packaging 1 - Length (m)	0.395m
Packaging 1 - Qty	500.0
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.03555m³
Packaging 1 - Weight (kg)	1.294135kg
Packaging 1 - Width (m)	0.45m
