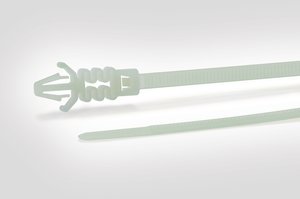

150-23295

产品描述：: Bundling and fixing solution Ideal combination of materials and design Different positions of the fixing anchor are available to fit installation space

TE	150-23295
分类	紧固件
品牌	海尔曼太通全球(HellermannTyton)
类型	Features Certifications & Approvals Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50SVD Competences Cable holder
描述	Bundling and fixing solution Ideal combination of materials and design Different positions of the fixing anchor are available to fit installation space
Colour	Natural (NA)
Identification Plate Position	none
Pack Cont.	1000pcs.
Package Quantity per	bag
PART DESCRIPTION	T50SVD-PA66-NA
Releasable Closure (Yes/No)	No
颜色	Natural (NA)
Tie Closure	plastic pawl
Variant	Inside Serrated
Bundle ∅ max.	25.0mm
Bundle ∅ min.	1.6mm
Length (L)	161mm
Min.Tensile Strength	225N
Width (W)	4.6mm
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 V2
Hazardous good	No
Material	Polyamide 6.6 (PA66)
Operating Temperature - °C	-40 °C to +105 °C
GTIN-13 / EAN	4031026119861.0
Packaging 1 - Height (m)	0.2m
Packaging 1 - Length (m)	0.395m
Packaging 1 - Qty	1000.0
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.03555m³
Packaging 1 - Weight (kg)	1.658135kg
Packaging 1 - Width (m)	0.45m
