| TE | 126-00206 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T8RWPM3.5 Competences Cable holder Accessories Similar products |

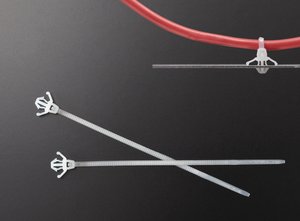

| 描述 | Easy to assemble without the need for a tool Cable tie head always situated in defined position Arrowhead simply locks into place Supporting legs provide a secure and firm fixing in areas where space is limited |
| Application Tool | MK8-LT |
| Colour | White (WH) |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T8RWPM3.5-PA66V0-WH |
| Product Family | Applicable to the smallest panel hole（φ3.5mm） Ideal for small diameter cables. |
| Product Group | Suitable for routing small-diameter cables in close proximity to a circuit board or for attaching cables to the reverse side of a chassis in limited space. |
| Releasable Closure (Yes/No) | No |
| 颜色 | White (WH) |
| Tie Closure | plastic pawl |
| Bundle ∅ max. | 15mm |
| Bundle ∅ min. | 1.0mm |
| Length (L) | 81mm |
| Min.Tensile Strength | 36N |
| Thickness (T) | 0.9 |
| Width (W) | 1.7mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V0 |
| Hazardous good | No |
| Material | Polyamide 6.6 V0 (PA66V0) |
| Operating Temperature - °C | -40 °C to +105 °C |
| Specifications | ANSI/UL 1565, ANSI/UL 62275 |
| UL OCD link | Link |
| UL-File Number | E64962 |
| GTIN-13 / EAN | 4944387108248.0 |
| Packaging 1 - Height (m) | 0.035m |
| Packaging 1 - Length (m) | 0.225m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00146m³ |
| Packaging 1 - Weight (kg) | 0.115001kg |
| Packaging 1 - Width (m) | 0.185m |
