| TE | 156-00074 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to WSRFT9B Competences Cable holder Accessories Similar products |

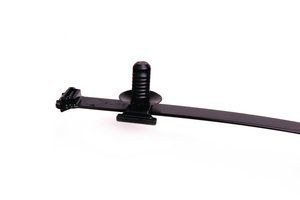

| 描述 | Pre-assembled 2-piece fixing tie with fir tree foot part Cable tie head can be moved after bundling Easy to assemble without the need for a tool Disc adjusts tie for pressure from various directions and minimises access of dust and dirt Fir tree foot part can be used for a variety of panel thicknesses Suitable for use within threaded holes |
| Application Tool | MK6, MK9P, MK21, EVO9, EVO9HT |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | WSRFT9B-PA66HIRHSUV-BK |
| Product Family | Fir Tree Parts FT9 |
| Product Group | 2-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 105.0mm |
| Bundle ∅ min. | 9.5mm |
| Length (L) | 383.5mm |
| Min.Tensile Strength | 535.0N |
| Width (W) | 12.7mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026419442.0 |
| Packaging 1 - Height (m) | 0.09m |
| Packaging 1 - Length (m) | 0.48m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.01382m³ |
| Packaging 1 - Weight (kg) | 0.973201kg |
| Packaging 1 - Width (m) | 0.32m |
| Packaging 2 - Type | carton |
