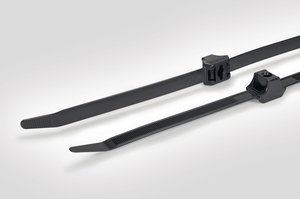

| TE | 115-00144 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to DCT11 Competences Cable holder |
| 描述 | Parallel seperation between hoses, wires, cables and tubing Abrasion protection Optional mounting hole for securing bundles along the Chassis of trucks, trails and heavy duty equipment |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | DCT11-PA66HIRHSUV-BK |
| Product Group | 1-piece fixing ties for weld studs, for heavy duty applications, for parallel routing |
| Releasable Closure (Yes/No) | No |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 58.0mm |
| Bundle ∅ min. | 6.4mm |
| Length (L) | 487.68mm |
| Min.Tensile Strength | 667.0N |
| Thickness (T) | 1.4mm |
| Width (W) | 12.7mm |
| Flammability | UL 94 HB |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026579290.0 |
| Packaging 1 - Weight (kg) | 1.288kg |
