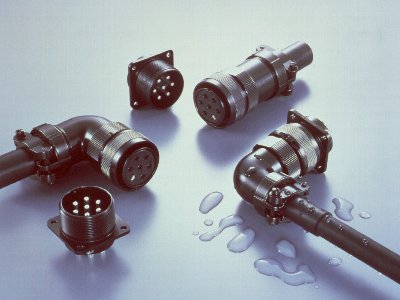

JL04HV-2A22-22SEX-B-R

TE	JL04HV-2A22-22SEX-B-R
分类	连接器
类型	连接器
品牌	航空电子(JAE)
项目	JL04HV-2A22-22SEX-B-R
描述	JL04HV-2A22-22SEX-B-R JAE Black system interference color
状态	Active
Features	Panel mount receptacle, TÜV, Non-waterproof type, 4 pos., Socket, Contact arrangement code: 22-22
孔位数	4.0
Number of Positions	4 pos.
Rated Current (A)	57
防水	否
Waterproof/ Non-waterproof	Non-waterproof
颜色	Black system interference color
Applications	Machine tools, Servomotors, Robots, Semiconductor Equipment, FA equipment, Industrial equipment, Rolling stock, Vessels, Telecommunications devices, Measurement equipment, Broadcast systems, Medical equipment, Computers and peripherals, and other electronic/ electric equipment.
Connector Type	Panel mount receptacle
连接器类型	母端
Contact Type	Socket
Applicable Wire Size (AWG)	-
Shell Size	22
Dielectric Withstanding Voltage (VACr.m.s. 1minute)	2,000
Contact Resistance (milliohm max.)	2
Operating Temperature Range (deg. C)	-55 to +125
Finish of Contact in Connecting Area	Silver plating
符合危害性物質限制指令标准	10 substances (2011/65/EU)
组装	JL04V-6A22-22PEX-EB-R JL04V-6A22-22PEX-EB1-R
Remarks	Contact Arrangement [22-22] is described as JL04HV
