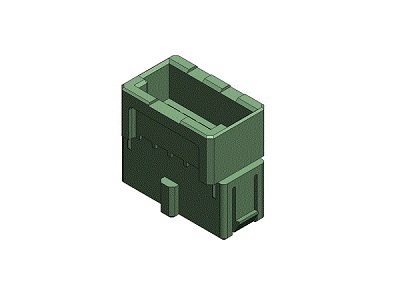

JN14CR09PM1
- 类 型:
- 连接器
- 品 牌:
- 航空电子(JAE)
- 颜 色:
- 产品描述:
- JN14CR09PM1 JAE
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | JN14CR09PM1 |
| 分类 | 连接器 |
| 类型 | 连接器 |
| 品牌 | 航空电子(JAE) |
| 项目 | JN14CR09PM1 |
| 描述 | JN14CR09PM1 JAE |
| 状态 | Active |
| Features | All-plastic, Low-profile, Waterproof connector for compact servomotors, for encoder, 9 pos., Panel mount receptacle |
| 孔位数 | 9.0 |
| Number of Positions | 9 pos. |
| Rated Current (A) | 1 A |
| 防水 | 是 |
| Waterproof/ Non-waterproof | IP67 (when mated) |
| Connector Type | Panel mount receptacle |
| 连接器类型 | 公端 |
| Contact Type | Pin |
| Applicable Wire Size (AWG) | 28 to 26 |
| Shell Size | R |
| Dielectric Withstanding Voltage (VACr.m.s. 1minute) | 500 VACr.m.s. |
| Operating Temperature Range (deg. C) | -40 deg. C to +125 deg. C |
| Applicable Contacts | JN-24P-C2B-B1-10000 |
| 符合危害性物質限制指令标准 | 10 substances (2011/65/EU) |
| 欧州化学物质规制标准 | 211 substances (19/01/2021) |
| 组装 | JN14FR09SM1 |
