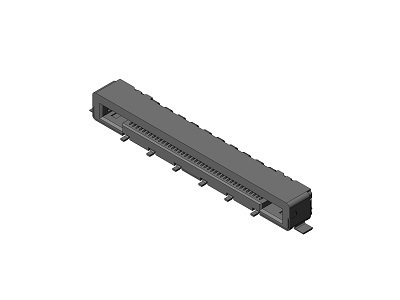

FI-RE41S-HF

TE	FI-RE41S-HF
分类	连接器
类型	连接器
品牌	航空电子(JAE)
项目	FI-RE41S-HF
描述	FI-RE41S-HF JAE
状态	Active
Features	Connector for internal serial transmission, Standard type, 41 pos., Receptacle
孔位数	41.0
Number of Positions	41 pos.
Contact Pitch (mm)	0.5 mm
Rated Current (A)	0.8 A
Connector Type	Receptacle
Connector Style	Right angle
Wire Termination Style	-
Applicable Wire Size (AWG)	-
Dielectric Withstanding Voltage (VACr.m.s. 1minute)	500
Insulation Resistance (megaohm min.)	100
Contact Resistance (milliohm max.)	50
Finish of Contact in Connecting Area	Gold plating over Nickel
Finish of Contact in PCB Mounting Area	Tin plating over Nickel
符合危害性物質限制指令标准	10 substances (2011/65/EU)
欧州化学物质规制标准	211 substances (19/01/2021)
组装	FI-RE41HL FI-RE41CL JF08R0R041020UA JF08R0R041030UA JF08R0R041040UA
