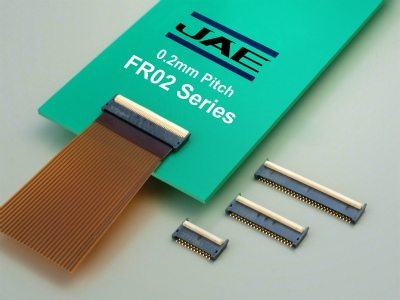

FR02C023JA1-R5000
- 类 型:
- 连接器
- 品 牌:
- 航空电子(JAE)
- 颜 色:
- 产品描述:
- FR02C023JA1-R5000 JAE
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | FR02C023JA1-R5000 |
| 分类 | 连接器 |
| 类型 | 连接器 |
| 品牌 | 航空电子(JAE) |
| 项目 | FR02C023JA1-R5000 |
| 描述 | FR02C023JA1-R5000 JAE |
| 状态 | Active |
| Features | 0.2 mm Pitch, 0.82 mm Mating Height, Top-and-Bottom Surface Connection Type FPC Connector, 23 pos., Embossed tape packaging |
| 孔位数 | 23.0 |
| Number of Positions | 23 pos. |
| Contact Pitch (mm) | 0.2 mm staggered pitch |
| Rated Current (A) | AC, DC each 0.25 A per terminal |
| Rated Voltage (V) | AC, DC each 50V per terminal |
| Connector Type | Top-and-bottom surface connection type |
| Operating Temperature Range (deg. C) | -40 Deg. C to +85 Deg. C |
| Finish of Contact in Connecting Area | Gold plating over Nickel |
| 符合危害性物質限制指令标准 | 10 substances (2011/65/EU) |
| 欧州化学物质规制标准 | 211 substances (19/01/2021) |
