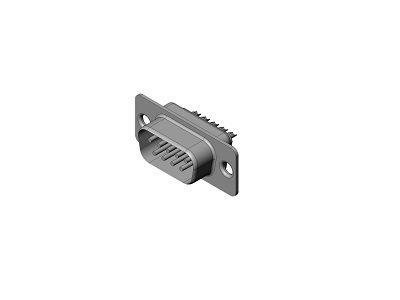

DEM-9PR
- 类 型:
- 连接器
- 品 牌:
- 航空电子(JAE)
- 颜 色:
- 产品描述:
- DEM-9PR JAE
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | DEM-9PR |
| 分类 | 连接器 |
| 类型 | 连接器 |
| 品牌 | 航空电子(JAE) |
| 项目 | DEM-9PR |
| 描述 | DEM-9PR JAE |
| 状态 | Active(NRND) |
| Features | D-Sub Connector, 9 pos., Cable side connecter |
| 孔位数 | 9.0 |
| Number of Positions | 9 pos. |
| Rated Current (A) | 5 |
| Connector Type | Cable side connecter |
| 连接器类型 | 公端 |
| Contact Type | Pin |
| Wire Termination Style | Soldering |
| Applicable Wire Size (AWG) | #20 AWG max. |
| Shell Size | E |
| Applicable Wire Size (mm2) | 0.52 Max. |
| Dielectric Withstanding Voltage (VACr.m.s. 1minute) | 1250 |
| Insulation Resistance (megaohm min.) | 5000 |
| Contact Resistance (milliohm max.) | 2.7 |
| Operating Temperature Range (deg. C) | -55 to +120 |
| Shell Type | Standard type |
| Material of Insulator | Synthetic resin (Dark green) |
| Contact | With Contacts |
| Finish of Contact in Connecting Area | Gold plating |
| Existence of Ferrite | FALSE |
| 符合危害性物質限制指令标准 | 10 substances (2011/65/EU) |
| 组装 | DEMF-9SR DEM-9SR |
