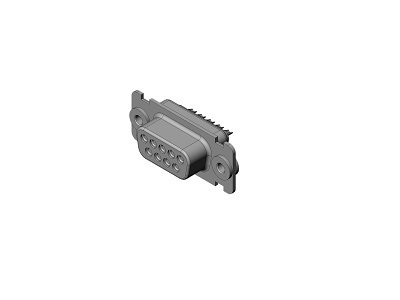

DEMF-9SR

DEMF-9SR

类  型:
连接器
品  牌:
航空电子(JAE)
颜  色:
产品描述:
DEMF-9SR JAE
TE DEMF-9SR
分类 连接器
类型 连接器
品牌 航空电子(JAE)
项目 DEMF-9SR
描述 DEMF-9SR JAE
状态 Active(NRND)
Features D-Sub Connector, 9 pos., Cable side connecter
孔位数 9.0
Number of Positions 9 pos.
Rated Current (A) 5
Connector Type Cable side connecter
连接器类型 母端
Contact Type Socket
Wire Termination Style Soldering
Applicable Wire Size (AWG) #20 AWG max.
Shell Size E
Applicable Wire Size (mm2) 0.52 Max.
Dielectric Withstanding Voltage (VACr.m.s. 1minute) 1250
Insulation Resistance (megaohm min.) 5000
Contact Resistance (milliohm max.) 2.7
Operating Temperature Range (deg. C) -55 to +120
Shell Type Floating type
Material of Insulator Synthetic resin (Dark green)
Contact With Contacts
Finish of Contact in Connecting Area Gold plating
Existence of Ferrite FALSE
符合危害性物質限制指令标准 10 substances (2011/65/EU)
组装 DEM-9PR
