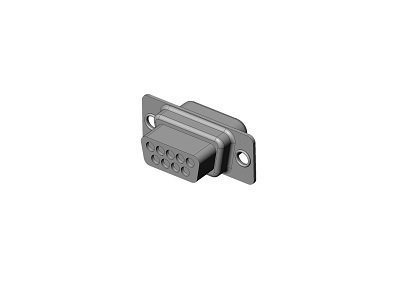

DEU-9PF-F0

类　　型：: 连接器

品　　牌：: 航空电子(JAE)

颜　　色：

产品描述：: DEU-9PF-F0 JAE

TE	DEU-9PF-F0
分类	连接器
类型	连接器
品牌	航空电子(JAE)
项目	DEU-9PF-F0
描述	DEU-9PF-F0 JAE
状态	Active
Features	D-Sub Connector, 9 pos., Cable side connecter
孔位数	9.0
Number of Positions	9 pos.
Rated Current (A)	5
Connector Type	Cable side connecter
连接器类型	公端
Contact Type	Pin
Wire Termination Style	Crimp
Applicable Wire Size (AWG)	#30 to #18 AWG
EMI Shielded	True
Shell Size	E
Applicable Wire Size (mm2)	0.05 to 0.81
Dielectric Withstanding Voltage (VACr.m.s. 1minute)	1000
Insulation Resistance (megaohm min.)	5000
Contact Resistance (milliohm max.)	6(AWG #30 to #28)
Operating Temperature Range (deg. C)	-65 to +125
Shell Type	Standard type
Material of Insulator	Glass-filled PBT/Glass-filled Nylon (UL94V-0, Black)
Contact	Contacts are sold separately
Existence of Ferrite	FALSE
Applicable Contacts	DC-20-24P-10000,DC-20-22P-10000,DC-20-18P-10000,DC-20-24P-PKG100,DC-20-22P-PKG100,DC-20-18P-PKG100,030-50641,030-50635,030-1954-000
Use with Accessories	DE-C8N-J9-F*-1RN
符合危害性物質限制指令标准	10 substances (2011/65/EU)
欧州化学物质规制标准	211 substances (19/01/2021)
组装	DELC-J9SAF-12L9E DELC-J9SAF-21L9E DELC-J9SAF-28L16E DELC-J9SAF-30L9FE DELC-J9SAFE DELC-J9SAF-10L9E DELC-J9SAF-13L9E DE-9SF-T-N DELC-J9SAF-20L9E DELC-J9SAF-13L6E DELC-J9SAF-23L9E DELC-J9SAF-10L6E DELC-J9SAF-20L6E DELC-J9SAF-13L8E DELC-J9SAF-13L9FE DELC-J9SAF-20L8E DELC-J9SAF-20L9FE DELC-J9SAF-23L8E DEU-9SF-F0 DELC-J9SAF-10L8E DELC-J9SAF-13L6FE DELC-J9SAF-10L9FE DELC-J9SAF-23L6E DE-9SF-T-N-S1E DELC-J9SAF-23L6FE DELC-J9SAF-10L6FE DE-9SAF-N DELC-J9SAF-26L9E
