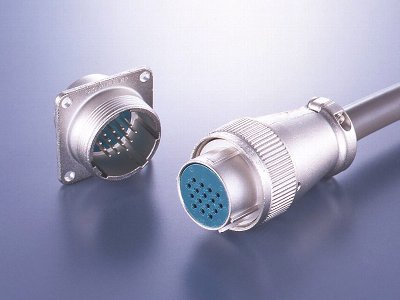

SRCN2A13-3P
- 类 型:
- 连接器
- 品 牌:
- 航空电子(JAE)
- 颜 色:
- Nickel plating
- 产品描述:
- SRCN2A13-3P JAE Nickel plating
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | SRCN2A13-3P |
| 分类 | 连接器 |
| 类型 | 连接器 |
| 品牌 | 航空电子(JAE) |
| 项目 | SRCN2A13-3P |
| 描述 | SRCN2A13-3P JAE Nickel plating |
| 状态 | Active |
| Features | Conformed to JIS C 5432, UL approved, panel-to-cable/ cable-connecting, solder type, 3 pos., Panel mount receptacle |
| 孔位数 | 3.0 |
| Number of Positions | 3 pos. |
| Rated Current (A) | 10 A |
| 防水 | 否 |
| Waterproof/ Non-waterproof | Non-waterproof |
| 颜色 | Nickel plating |
| Connector Type | Panel mount receptacle |
| 连接器类型 | 公端 |
| Contact Type | Pin |
| Applicable Wire Size (AWG) | 16 max. |
| Shell Size | 13 |
| Dielectric Withstanding Voltage (VACr.m.s. 1minute) | 1000 |
| Operating Temperature Range (deg. C) | -25 to +85 |
| Finish of Contact in Connecting Area | Silver plating |
| 符合危害性物質限制指令标准 | 10 substances (2011/65/EU) |
| 组装 | SRCN6A13-3S |
