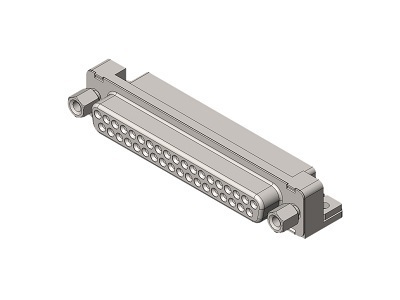

DCLC-J37SAF-10L6E

TE	DCLC-J37SAF-10L6E
分类	连接器
类型	连接器
品牌	航空电子(JAE)
项目	DCLC-J37SAF-10L6E
描述	DCLC-J37SAF-10L6E JAE
状态	Active
Features	D-Sub Connector, PCB side connector, Right angle, Socket, 37 pos.
孔位数	37.0
Number of Positions	37 pos.
Rated Current (A)	5
Connector Type	PCB side connector
Connector Style	Right angle
连接器类型	母端
Contact Type	Socket
EMI Shielded	True
PCB Mounting Style	Soldering
Shell Size	C
Dielectric Withstanding Voltage (VACr.m.s. 1minute)	1250
Insulation Resistance (megaohm min.)	5000
Contact Resistance (milliohm max.)	13
Operating Temperature Range (deg. C)	-55 to +105
Material of Insulator	Synthetic resin (UL94V-0, Black)
Contact	With Contacts
Finish of Contact in Connecting Area	Gold plating
Finish of Contact in PCB Mounting Area	Tin or Tin-alloy plating
Mounting Method	M3.0 (Earth lug)
Screw Lock Assembly	Hexagon (short type), M2.6
Existence of Ferrite	FALSE
符合危害性物質限制指令标准	10 substances (2011/65/EU)
欧州化学物质规制标准	211 substances (19/01/2021)
组装	DCU-37PF-F0 DC-37PF-N
