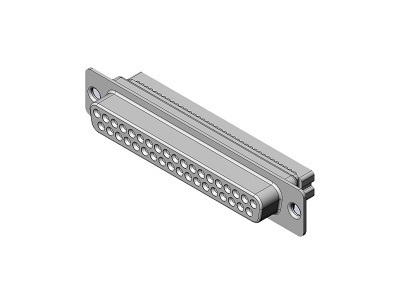

DCSP-JB37SF

TE	DCSP-JB37SF
分类	连接器
类型	连接器
品牌	航空电子(JAE)
项目	DCSP-JB37SF
描述	DCSP-JB37SF JAE
状态	Active
Features	D-Sub Connector, 37 pos., Cable side connecter
孔位数	37.0
Number of Positions	37 pos.
Rated Current (A)	1
Connector Type	Cable side connecter
连接器类型	母端
Contact Type	Socket
Wire Termination Style	Insulation displacement
Applicable Wire Size (AWG)	1.27 mm or 1.38 mm pitch FRC, #28 to #26 AWG
EMI Shielded	True
Shell Size	C
Dielectric Withstanding Voltage (VACr.m.s. 1minute)	600
Insulation Resistance (megaohm min.)	1000
Contact Resistance (milliohm max.)	15
Operating Temperature Range (deg. C)	-55 to +105
Shell Type	Standard type
Material of Insulator	Glass-filled PBT (UL94V-0, Black)
Contact	With Contacts
Finish of Contact in Connecting Area	Gold plating
Existence of Ferrite	FALSE
Use with Accessories	DCSP-SR
符合危害性物質限制指令标准	10 substances (2011/65/EU)
欧州化学物质规制标准	211 substances (19/01/2021)
组装	DC-37PF-T-N DC-37PAF-N
