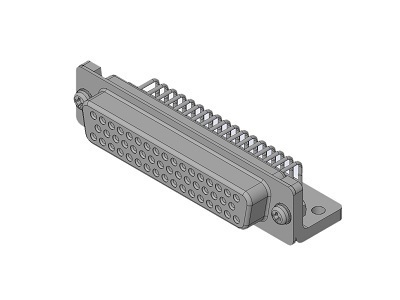

DD-50SAF-N

TE	DD-50SAF-N
分类	连接器
类型	连接器
品牌	航空电子(JAE)
项目	DD-50SAF-N
描述	DD-50SAF-N JAE
状态	Active
Features	D-Sub Connector, PCB side connector, Right angle, Socket, 50 pos.
孔位数	50.0
Number of Positions	50 pos.
Rated Current (A)	5
Connector Type	PCB side connector
Connector Style	Right angle
连接器类型	母端
Contact Type	Socket
EMI Shielded	True
PCB Mounting Style	Soldering
Shell Size	D
Dielectric Withstanding Voltage (VACr.m.s. 1minute)	1250
Insulation Resistance (megaohm min.)	5000
Contact Resistance (milliohm max.)	4
Operating Temperature Range (deg. C)	-55 to +105
Material of Insulator	Glass-filled PBT (UL94V-0, Black)
Contact	With Contacts
Finish of Contact in Connecting Area	Gold plating
Finish of Contact in PCB Mounting Area	Gold plating
Mounting Method	Holes 3.05mm dia.
Screw Lock Assembly
Existence of Ferrite	FALSE
符合危害性物質限制指令标准	10 substances (2011/65/EU)
欧州化学物质规制标准	211 substances (19/01/2021)
组装	DDU-50PF-F0 DD-50PF-N
