当前位置: 首页>产品>DD-50SF-N

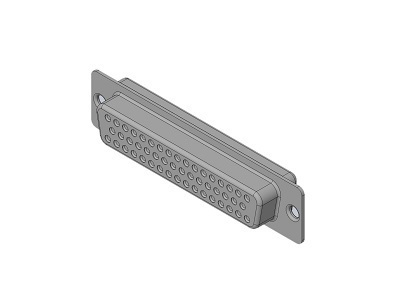

DD-50SF-N

DD-50SF-N

类  型:
连接器
品  牌:
航空电子(JAE)
颜  色:
产品描述:
DD-50SF-N JAE
TE DD-50SF-N
分类 连接器
类型 连接器
品牌 航空电子(JAE)
项目 DD-50SF-N
描述 DD-50SF-N JAE
状态 Active
Features D-Sub Connector, 50 pos., Cable side connecter
孔位数 50.0
Number of Positions 50 pos.
Rated Current (A) 5
Connector Type Cable side connecter
连接器类型 母端
Contact Type Socket
Wire Termination Style Soldering
Applicable Wire Size (AWG) #20 AWG max.
EMI Shielded True
Shell Size D
Applicable Wire Size (mm2) 0.52 Max.
Dielectric Withstanding Voltage (VACr.m.s. 1minute) 1250
Insulation Resistance (megaohm min.) 5000
Contact Resistance (milliohm max.) 2.7
Operating Temperature Range (deg. C) -55 to +105
Shell Type Standard type
Material of Insulator Glass-filled PBT (UL94V-0, Black)
Contact With Contacts
Finish of Contact in Connecting Area Gold plating
Existence of Ferrite FALSE
符合危害性物質限制指令标准 10 substances (2011/65/EU)
欧州化学物质规制标准 211 substances (19/01/2021)
组装 DD-50PF-T-N DD-50PF-R DD-50PAF-N
