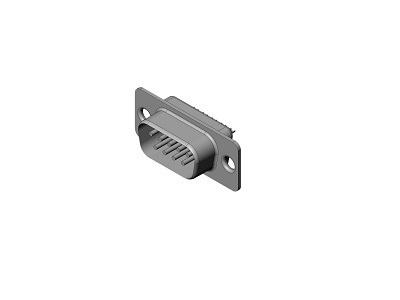

DE-9PF-N
- 类 型:
- 连接器
- 品 牌:
- 航空电子(JAE)
- 颜 色:
- 产品描述:
- DE-9PF-N JAE
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | DE-9PF-N |
| 分类 | 连接器 |
| 类型 | 连接器 |
| 品牌 | 航空电子(JAE) |
| 项目 | DE-9PF-N |
| 描述 | DE-9PF-N JAE |
| 状态 | Active |
| Features | D-Sub Connector, 9 pos., Cable side connecter |
| 孔位数 | 9.0 |
| Number of Positions | 9 pos. |
| Rated Current (A) | 5 |
| Connector Type | Cable side connecter |
| 连接器类型 | 公端 |
| Contact Type | Pin |
| Wire Termination Style | Soldering |
| Applicable Wire Size (AWG) | #20 AWG max. |
| EMI Shielded | True |
| Shell Size | E |
| Applicable Wire Size (mm2) | 0.52 Max. |
| Dielectric Withstanding Voltage (VACr.m.s. 1minute) | 1250 |
| Insulation Resistance (megaohm min.) | 5000 |
| Contact Resistance (milliohm max.) | 2.7 |
| Operating Temperature Range (deg. C) | -55 to +105 |
| Shell Type | Standard type |
| Material of Insulator | Glass-filled PBT (UL94V-0, Black) |
| Contact | With Contacts |
| Finish of Contact in Connecting Area | Gold plating |
| Existence of Ferrite | FALSE |
| Use with Accessories | DE-C8N-J9-F*-1RN |
| 符合危害性物質限制指令标准 | 10 substances (2011/65/EU) |
| 欧州化学物质规制标准 | 211 substances (19/01/2021) |
| 组装 | DELC-J9SAF-12L9E DELC-J9SAF-21L9E DELC-J9SAF-28L16E DELC-J9SAF-30L9FE DELC-J9SAFE DELC-J9SAF-10L9E DELC-J9SAF-13L9E DE-9SF-T-N DELC-J9SAF-20L9E DELC-J9SAF-13L6E DELC-J9SAF-23L9E DELC-J9SAF-10L6E DELC-J9SAF-20L6E DELC-J9SAF-13L8E DELC-J9SAF-13L9FE DELC-J9SAF-20L8E DELC-J9SAF-20L9FE DELC-J9SAF-23L8E DELC-J9SAF-10L8E DELC-J9SAF-13L6FE DELC-J9SAF-10L9FE DELC-J9SAF-23L6E DE-9SF-T-N-S1E DELC-J9SAF-23L6FE DELC-J9SAF-10L6FE DE-9SAF-N DELC-J9SAF-26L9E |
